Overview

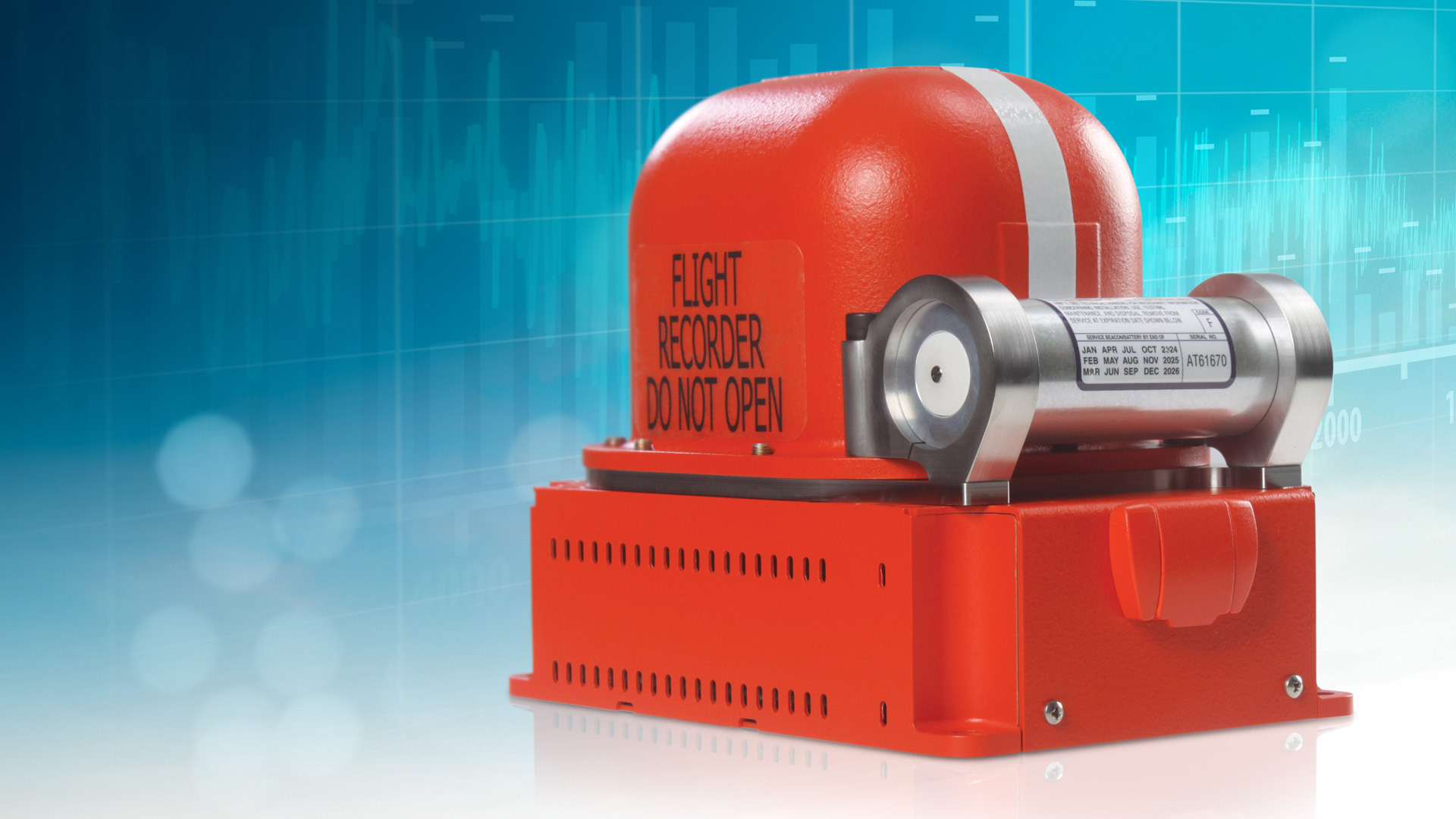

Fit to Fly with KAPTURE Cockpit Voice and Flight Data Recorders

Stay fit for flight with extended cockpit voice and flight data recorders to protect your data and meet the mandates. KAPTURE 25-Hour CVR/FDR complies with all the latest TSOs, meets EASA EUROCAE ED-112A requirements, and records data link communications.

Built-In Recorder Independent Power Supply

Universal Cockpit Voice and Flight Data Recorders are built to last, with continued recording for 10 minutes in the event of a power outage. Our patented Recorder Independent Power Supply (RIPS) is internal to the CVFDR, reducing weight and costs compared to an external LRU or bolt-on device. Fly without the worry of periodic maintenance - RIPS uses a capacitor pack rather than batteries.





Universal KAPTURE - 6th generation CVR/FDR solution

The KAPTURE line of Cockpit Voice and Flight Data Recorders includes five lightweight and compact model options, providing a customized recording solution for your aircraft. Available models include a CVR, FDR, and combination Cockpit Voice and Flight Data Recorder (CVFDR).

Each model features a lithium free 90-day Underwater Locator Beacon (ULB), and the CVR and CVFDR models offer a patented internal Recorder Independent Power Supply (RIPS) option.

UA’s sixth generation of recorders include all the features and benefits of the company’s previous CVR/FDR product line with reduced weights, plus many improvements and enhanced capabilities.

With increased cockpit voice and ambient audio recording capability of over 25 hours, the CVR and CVFDR models meet EASA’s mandate which requires all aircraft with an MTOW of 59,500 lbs. first issued with an individual Certificate of Airworthiness (CoA) on or after January 1, 2021, to be equipped with a 25-hour CVR. Recorded playback is proven to be clear and audible. The CVR and CVFDR models also provide over 25 hours of non-audio recording such as UTC, rotor speed, and data link messaging. The FDR offers over 90 hours of recording ARINC 717 data, and the inclusion of two ARINC 429 ports allows for an additional 25 hours of data and expanded integration capabilities.

The KAPTURE line of CVR/FDR offers the utmost in reliability with high Mean Time Between Failure (MTBF) and is backed by UA’s world-renowned customer support. The line is designed for operators seeking a recording solution that meets all of the latest certifications and requirements, including MOPS ED-112A compliance, for the freedom to fly around the world.

Cockpit Voice Recording
  • Over 25 hours of cockpit voice and ambient audio
  • Over 25 hours of non-audio (UTC, rotor speed, data link messaging)
Flight Data Recording
  • ARINC 717: Over 90 hours of flight data storage
  • ARINC 429: Two inputs, at least 25 hours of flight data storage
Voice/Data Stored in Solid-State Flash Memory
Patented Internal Recorder Independent Power Supply (RIPS):

Optional backup power allows the CVR to record data for 10 minutes +/- 1 minute after a power fail.

Maintenance on Condition Yields Lower Cost of Ownership:

No requirement for periodic maintenance (excluding ULB)

90 Day ULB with No Lithium Batteries:
No special conditions and no dangerous goods shipping requirements
ARINC 757 Compatible Recorded Inputs
  • Three crew microphones
  • One area microphone
  • Helicopter rotor speed
  • UTC
  • Data link ARINC 758
Control Unit Options
  • DZUS mount or remote CCU
Test Set
  • PC-based ramp testing/diagnostic

Meet all of the latest certifications and requirements for the freedom to fly around the world.

The KAPTURE CVR/FDR meet the following qualifications:
  • TSO-C123c, Cockpit Voice Recorder Systems
  • TSO-C124c, Flight Data Recorder Systems
  • TSO-C155b, Recorder Independent Power Supply
  • TSO-C177a, Data Link Recorder Systems
  • EUROCAE ED-112A, Minimum Operational Performance Specification for Crash Protected Airborne Recorder Systems
  • DO-160G (Rotorcraft and fixed wing vibration)
  • DO-178C, Level D
  • RTCA/DO-254 DAL D
  • TCCA SOR/2019-130 (RIPS Mandate)



KAPTURE is uniquely suited to replace an existing Universal 120-minute CVR, or any brand of CVR using an adapter tray.

Specifications

Hardware
  • Size: 6.1 in. (H) x 4.9 in. (W) x 8.0 in. (D)
  • Weight:
    • With RIPS: 8.0 lbs.
    • Without RIPS: 7.4 lbs.
  • Power: 28 VDC/115 VAC
  • Mounting: Circular connector, bolt-down mount

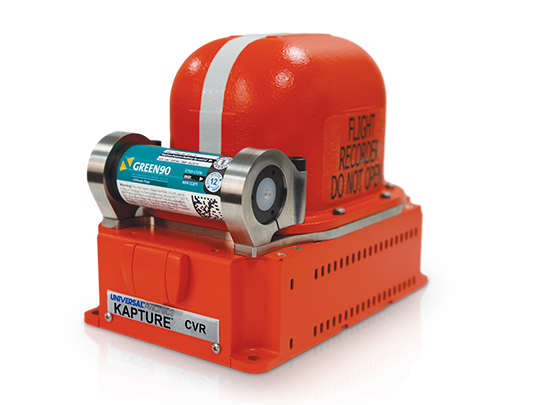

kapture_1
Cockpit Voice Recording
  • Over 25 hours of cockpit voice and ambient audio
  • Over 25 hours of non-audio (UTC, rotor speed, data link messaging)

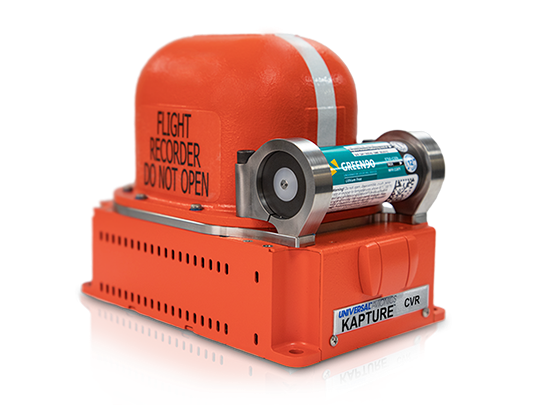

kapture_2
Flight Data Recording
  • ARINC 717: Over 90 hours of flight data storage
  • ARINC 429: Two inputs, at least 25 hours of flight data storage
Voice/Data Stored in Solid-State Flash Memory
Recorder Independent Power Supply (RIPS)
  • Optional backup power allows the CVR to record data for 10 minutes +/- 1 minute after a power fail
Maintenance on Condition Yields Lower Cost of Ownership
  • No requirement for periodic maintenance (excluding ULB)
90 Day ULB with No Lithium Batteries
  • No special conditions
  • No dangerous goods shipping requirements
ARINC 757 Compatible Recorded Inputs
  • Three crew microphones
  • One area microphone
  • Helicopter rotor speed
  • UTC
  • Data link ARINC 758
Control Unit Options
  • DZUS mount or remote CCU
Test Set
  • PC-based ramp testing/diagnostic

FAQs

Is there a certified Universal Avionics upgrade for my aircraft?
Search our STC database by aircraft make, model, product, or certification authority to find available Universal Avionics upgrades. Because eligibility can depend on aircraft serial number and existing configuration, contact Universal Avionics or an Authorized Dealer to confirm the installation for your aircraft.
What is the FAA 25-hour cockpit voice recorder (CVR) requirement?
The FAA requires certain aircraft that must carry a cockpit voice recorder to retain 25 hours of cockpit audio instead of two hours. Compliance dates and applicability vary by aircraft type, manufacture date, weight, seating, and operating rules. The FAA Reauthorization Act of 2024 also establishes a May 16, 2030 deadline for covered existing aircraft. Operators should confirm applicability to their specific fleet.
Does Universal Avionics offer a 25-hour cockpit voice recorder?
Yes. Universal Avionics KAPTURE cockpit voice and flight data recorders provide more than 25 hours of cockpit voice recording, along with flight and datalink data recording. KAPTURE solutions are available for forward-fit and retrofit applications, with installation eligibility depending on the aircraft and configuration.
What does Universal Avionics Connected Avionics do?
Universal Avionics Connected Avionics securely connects the FMS, tablet applications, aircraft systems, and ground operations to reduce manual data entry and simplify flight workflows. Capabilities can include two-way flight-plan synchronization, wireless database updates, automatic post-flight data collection, and flight-data reporting through UA FlightPartner and UA FlightReview.
How do I buy Universal Avionics products or request a quote?
Contact Universal Avionics Sales or work with a Universal Authorized Dealer to find a certified solution for your aircraft. Provide your aircraft make, model, serial number, current avionics, operating region, and desired capability so the team can identify the appropriate solution and installation path.
