Overview

Universal Flight Management Systems (FMS) offer the quickest, most efficient means of creating a flight plan and a pilot-friendly approach to altering plans. Information is at your fingertips, including real-time fuel management to eliminate unnecessary fuel stops, saving time and money. Fly complex procedures accurately with enroute navigation for holding patterns, approaches, heading to altitude, and more. Access extensive navigation databases with quick and efficient ways to enter data.

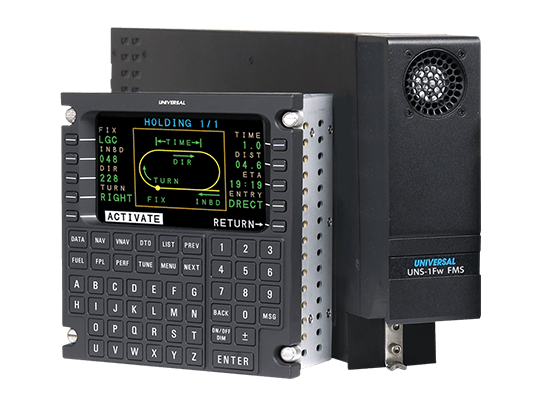

The UNS-1Fw is comprised of an FPCDU and a remotely mounted Navigation Computer Unit (NCU). Three FPCDU options are available:
  1. compact FPCDU with 4-inch color display
  2. standard FPCDU with 5-inch color display
  3. a Multi-Function CDU (MCDU) for airlines and special missions

The NCU is housed in a 2-MCU-sized LRU which includes the integral GPS/SBAS receiver.

The UNS-1Fw incorporates extensive I/O capabilities for advanced system integration and includes twice the number of ARINC ports available as the UNS-1Lw.

Flat Panel Color Displays (integral/CDU)
Internal 12-channel GPS/SBAS
  • TSO-C146c, Class Gamma-3
  • FDE prediction program for remote/oceanic ops
Company Routes Database
  • Up to 2,000 routes, 200 company waypoints and 100 company airports
Clearance-language Format
Navigation Database
  • SID/STAR procedures
  • Airways
  • Approaches
  • Plain-language references
ARINC 424 Procedural Leg Guidance
Heading Mode
VNAV
  • Fully coupled
  • Computed top-of-descent
  • Target vertical speed
  • Vertical Direct-To
Holding Patterns
  • Included in Navigation Database
  • Manually defined
3-D Approach Mode
  • Laterally coupled
  • Vertically coupled
Fuel Management
  • 4 Fuel flow inputs
Take Off/Landing (excluding UNS-1Lw)
Frequency Management
UniLink Compatible
  • Weather graphics
  • Text Messaging
TAWS Compatible
  • TAWS graphics
Universal Cockpit Display Compatible
SCAT-I GPS Approach Compatible
SBAS Planned Growth
LAAS Planned Growth


Specifications

Hardware
  • Size: 7.64 in. H x 2.24 in. W x 15.26 in. D
  • Weight: 6.5 lbs.
  • Mounting: 2 MCU Rack
  • Control/Display: Compatible with MCDU, 5-inch FPCDU, 4-inch FPCDU
Standard Interfaces
  • All Digital Configuration, Digital & Analog Configuration, ASCB Version A Configuration
  • 16 Inputs/8 Outputs
Power
  • Primary Input: 28 VDC standard
  • Lighting: 5 or 28 VDC
  • Consumption: 56 Watts max.
  • Cooling: Convection
Internal SBAS/GPS Receiver
  • 12-Channel Satellite Tracking Engine, TSO-C146c, Class Gamma-3, FDE Prediction Program for Remote/Oceanic Ops
FAA TSO/ETSO

C109, C115b, C146c, C190, JTSO C115b

5-inch FPCDU
  • Size: 6.38 in. H x 5.75 in. W x 3.25 in. D
  • Weight: 3.8 lbs.
  • Display: Color
  • Faceplate: Gray or Black Lines/Charcters: 11/24
  • Line Select Keys: 10
  • Panel Lighting: 5 or 28 VDC
  • Video (NTSC, RGB format): Optional Weather Graphics: Optional
4-inch FPCDU
  • Size: 4.50 in. H x 5.75 in. W. x 3.25 in. D
  • Weight: 3.0 lbs.
  • Display: Color
  • Faceplate: Gray or Black Lines/Charcters: 11/24
  • Line Select Keys: 10
  • Panel Lighting: 5 or 28 VDC
  • Video (NTSC, RGB format): Optional Weather Graphics: Optional



FAQs

Is there a certified Universal Avionics upgrade for my aircraft?
Search our STC database by aircraft make, model, product, or certification authority to find available Universal Avionics upgrades. Because eligibility can depend on aircraft serial number and existing configuration, contact Universal Avionics or an Authorized Dealer to confirm the installation for your aircraft.
How do I start a Universal Avionics navigation database subscription?
Contact Universal Avionics Database Services to start a navigation database subscription. Have your FMS model, Software Control Number, coverage area, and preferred delivery method available so we can identify the correct subscription for your aircraft.
How can I connect an iPad to my Universal Avionics FMS?
Universal Avionics Connected Avionics connects a compatible Universal FMS to an iPad through the aircraft’s SSDTU+ secure wireless interface. UA FlightPartner can then exchange flight plans and other supported data between compatible applications and the FMSw. Hardware, software, and certification requirements vary, so contact us to confirm compatibility.
What does Universal Avionics Connected Avionics do?
Universal Avionics Connected Avionics securely connects the FMS, tablet applications, aircraft systems, and ground operations to reduce manual data entry and simplify flight workflows. Capabilities can include two-way flight-plan synchronization, wireless database updates, automatic post-flight data collection, and flight-data reporting through UA FlightPartner and UA FlightReview.
