UNS-1Fw | Extended FMS

Extended Flight Management System with SBAS GPS Receiver

UNS-1Fw features extensive 16-Input / 8-Output capabilities for advanced system integration and includes twice the number of ARINC ports available as the standard FMS.

SBAS-capable FMSs build upon the company's popular market-proven product design, offering more advanced features and interfaces, and a growth path to meet the requirements of the future.

Download Product Information

SBAS Flight Management Systems

Understanding Data Comm Systems with FANS 1/A+, CPDLC DCL, and ATN B1

Overview +

Features +

Specifications +

Components +

STC Certification +

STC Number	Status	Date
ST04266AT	Issued	6/9/2016

Description

Installation of Universal Avionics UNILINK-801 data Link system (TSO-C16, DO-178B level D) in accordance with FAA approved ARC Avionics Master Drawing list Document No. 710-061313, Revision "F", dated June 9, 2016, or later FAA approved revisions. The ins

STC Holder

AIRCRAFT RADIO & AVIONICS, LLC.
5415 NW 36TH ST
UNITED STATES

Responsible Office

Atlanta Aircraft Certification Office (ACE-115A), Tel: (404) 474-5500

Aircraft

Boeing 737-300
Boeing 737-400
Boeing 737-500

Components

UNS-1Fw
UL-801

STC Number	Status	Date
ST02403CH	Reissued	7/28/2008

Description

Installation of a single Universal Avionics UNS-1L Flight Management System or single or dual Universal Avionics UNS-1Lw or UNS-1Fw Flight Management Systems.

STC Holder

STEVENS AEROSPACE AND DEF SYS-GRVL
600 DELAWARE ST
UNITED STATES

Responsible Office

Chicago Aircraft Certification Office (ACE-115C), Tel: (847) 294-7358

Aircraft

Lear 25
Lear 35
Lear 36

Components

UNS-1Fw
UNS-1Lw
UNS-1L

STC Number	Status	Date
SR02574NY-D	Reissued	10/1/2011

Description

Installation of a Dual Universal Avionics Systems Corporation UNS-1Fw FMS.

STC Holder

SIKORSKY AIRCRAFT CORPORATION - COATESVILLE
110 E STEWART HUSTON DR
UNITED STATES

Responsible Office

New York Aircraft Certification Office (ANE-170), Tel: (516) 228-7300

Aircraft

Sikorsky S-76C
Sikorsky S-76C++
Sikorsky S-76C+

Components

UNS-1Fw

STC Number	Status	Date
ST01567WI-D	Reissued	9/17/2012

Description

Installation of Universal Avionics System corporation (UASC) dual UNS-1Fw or UNS-1Lw, Flight Management System (FMS)

STC Holder

DUNCAN AVIATION, INC - LINCOLN
4001 N PARK RD
UNITED STATES

Responsible Office

Wichita Aircraft Certification Office (ACE-115W), Tel: (316) 946-4100

Aircraft

Challenger CL600 1001 - 1085
Challenger CL601-1A 3001 - 3066

Components

UNS-1Fw
UNS-1Lw

STC Number	Status	Date
ST10754SC-D	Issued	5/7/2009

Description

Installation of dual Universal Avionics Systems Corporation UNS-1Fw Flight Management Systems.

STC Holder

GULFSTREAM AEROSPACE -- DALLAS
6210 DENTON DRIVE
UNITED STATES

Responsible Office

Ft. Worth Special Certification Office (ASW-190), Tel: (817) 222-5190

Aircraft

Gulfstream G-IIB
Gulfstream G-II

Components

UNS-1Fw

STC Number	Status	Date
ST03100CH	Issued	8/13/2012

Description

Installation of dual Universal Avionics Systems Corporation UNS-1Fw or UNS-1Lw Flight Management Systems

STC Holder

WEST STAR AVIATION HOLDINGS, LLC
18 TERMINAL DRIVE
UNITED STATES

Responsible Office

Chicago Aircraft Certification Office (ACE-115C), Tel: (847) 294-7358

Aircraft

Lear 36A
Lear 36
Lear 35A
Lear 35

Components

UNS-1Fw
UNS-1Lw

STC Number	Status	Date
ST00678DE	Issued	12/22/2008

Description

Installation of a dual Universal UNS-1Fw Flight Management System (FMS), on a Learject 60 series aircraft.

STC Holder

HAGGAN AVIATION
12420 EAST CONTROL TOWER RD
UNITED STATES

Responsible Office

Denver Aircraft Certification Office (ANM-100D), Tel: (303) 342-1080

Aircraft

Lear 60

Components

UNS-1Fw

STC Number	Status	Date
10050501	Issued	9/16/2014

Description

The Certification Basis for the original product as amended by the following additional or alternative airworthiness requirements: Special Condition(s): CRI H-01 Electronic Wiring Interconnection System (EWIS).The requirements for environmental protection

STC Holder

TENENCIA AEROSPACE DESIGN
DAKOTA HOUSE COVENTRY AIRPORT
UNITED KINGDOM

Responsible Office

N/A

Aircraft

BAE AVRO RJ100
BAE AVRO RJ70

Components

UNS-1Fw
UNS-1Ew
UNS-1Lw

STC Number	Status	Date
ST03362AT	Amended	6/28/2013

Description

Installation of a dual UNS-1F FMS, or UNS-1Fw WAAS-FMS

STC Holder

AIRCRAFT RADIO & AVIONICS, LLC.
5415 NW 36TH ST
UNITED STATES

Responsible Office

Atlanta Aircraft Certification Office (ACE-115A), Tel: (404) 474-5500

Aircraft

Boeing 737-400
Boeing 737-500
Boeing 737-200
Boeing 737-300

Components

UNS-1Fw
UNS-1F

STC Number	Status	Date
10039496	Issued	8/23/2022

Description

Replacement of UNS-1M by UNS-1Fw MMMS

STC Holder

AVIONICS INTEGRATON & (AIEC)
ENGINEERING CORPORATION AG HABICH-DIETSCHY-STRASSE 13
SWITZERLAND

Responsible Office

N/A

Aircraft

Lear 35
Lear 35A
Lear 36A
Lear 36

Components

UNS-1Fw

STC Number	Status	Date
ST03842AT	Amended	7/19/2010

Description

Installation of an UNS-1Fw FMS.

STC Holder

AVIONICS GROUP
13030 SW 133RD COURT
United States

Responsible Office

Atlanta Aircraft Certification Office (ACE-115A), Tel: (404) 474-5500

Aircraft

McDonnell Douglas MD-80
McDonnell Douglas MD-81
McDonnell Douglas MD-82
McDonnell Douglas MD-87
McDonnell Douglas DC-9

Components

UNS-1Fw
31921

STC Number	Status	Date
ST02614CH	Reissued	5/22/2009

Description

Installation of dual Universal Avionics Systems Corporation UNS-1Fw Flight Management Systems

STC Holder

WEST STAR AVIATION HOLDINGS, LLC
18 TERMINAL DRIVE
UNITED STATES

Responsible Office

Chicago Aircraft Certification Office (ACE-115C), Tel: (847) 294-7358

Aircraft

Falcon 50 0001 - 0252 ex 0251

Components

UNS-1Fw

STC Number	Status	Date
10016253	Issued	7/6/2009

Description

Universal Avionics UNS-1Fw with embedded WAAS. MDL -4 Config (TripleUNS-1Fw FMS with P/N 10709 #3 GPS-WAAS/Sirius Antenna)

STC Holder

UASC - CERTIFICATION GROUP
3260 EAST UNIVERSAL WAY
UNITED STATES

Responsible Office

N/A

Aircraft

Challenger CL600 1001 - 1085
Challenger CL601-3R 5135 - 5299
Challenger CL601-1A 3001 - 3066
Challenger CL601-3A 5001 - 5134

Components

UNS-1Fw

STC Number	Status	Date
P-LSH18-039	Issued	12/7/2018

Description

Sikorsky S76B EFIS System Installation

STC Holder

HELI-ONE CANADA ULC
AIRFRAMES & STRUCTURES FAC 4740 AGAR DRIVE
CANADA

Responsible Office

N/A

Aircraft

Sikorsky S-76B

Components

UNS-1Fw
VISION-1
DCU-4300
EFI-890H

STC Number	Status	Date
ST04534CH	Issued	4/4/2023

Description

Installation of Falcon 20 Cockpit Enhancements which include options for installation of three Universal Avionics Insight LCD Flight Displays (Pilot PFD/MFD and Copilot PFD) with associated controls, UNS-1FW Flight Management Systems, Electronic Control D

STC Holder

DAN BUZZ & ASSOCIATES
9199 COTTERS RIDGE
UNITED STATES

Responsible Office

Wichita Aircraft Certification Office (ACE-115W), Tel: (316) 946-4100

Aircraft

Falcon 20D

Components

UNS-1Fw
UL-801

STC Number	Status	Date
ST02070LA	Amended	2/1/2008

Description

Activation of Triple UNS-1Fw FMSs with embedded WAAS.

STC Holder

UASC - CERTIFICATION GROUP
3260 EAST UNIVERSAL WAY
UNITED STATES

Responsible Office

Los Angeles Aircraft Certification Office (ANM-100L), Tel: (562) 627-5200

Aircraft

Challenger CL601-1A 3001 - 3066
Challenger CL604 5301 - 5665
Challenger CL601-3A 5001 - 5134
Challenger CL600 1001 - 1085

Components

UNS-1Fw

STC Number	Status	Date
ST00034MC	Issued	12/17/2009

Description

Installation of (a) the Universal Avionics Systems Corporation UNS-1LW & UNS-1FW Flight Management System with a Wide Area Augmentation System and (b) the Trimble Model TA-12 Global Positioning System.

STC Holder

LEARJET, INC. - ARIZONA
1255 E AERO PARK BLVD
UNITED STATES

Responsible Office

Military Certification Office (ACE-100M), Tel: (316) 350-1580

Aircraft

Lear 35
Lear 35A

Components

UNS-1Fw
UNS-1Lw

STC Number	Status	Date
10016085	Issued	9/28/2017

Description

Installation of a dual Universal Avionics UNS-1F Flight Management System (FMS) or UNS-1Fw WAAS capable FMS, on- Boeing 737-200 and 737-300 aircraft without EFIS (Configuration I)- Boeing 737-300 aircraft with original Honeywell or Collins EFIS(Configurat

STC Holder

AIRCRAFT RADIO & AVIONICS, LLC.
5415 NW 36TH ST
UNITED STATES

Responsible Office

N/A

Aircraft

Boeing 737-300
Boeing 737-200

Components

UNS-1Fw
UNS-1F

STC Number	Status	Date
10050842	Issued	10/9/2019

Description

Universal UNS-1E(w) and UNS-1F(w) Flight Management System Upgrades.

STC Holder

FIELD AVIATION COMPANY INC.
2450 DERRY ROAD EAST HANGAR 2 SHIPPING/RECEIVING
CANADA

Responsible Office

N/A

Aircraft

DeHavilland DHC-8-300 Q300

Components

UNS-1Fw
UNS-1Ew

STC Number	Status	Date
ST02231LA	Issued	5/12/2009

Description

Installation of Dual Universal Avionics UNS-1Fw Flight Management System (FMS) with embedded Wide Area Augmentation System (WAAS)

STC Holder

CHICAGO JET GROUP LLC
43W522 ROUTE 30
UNITED STATES

Responsible Office

Los Angeles Aircraft Certification Office (ANM-100L), Tel: (562) 627-5200

Aircraft

Falcon 50 0001 - 0252 ex 0251

Components

UNS-1Fw

STC Number	Status	Date
SR03137NY	Issued	9/11/2012

Description

Installation of a Universal Avionics UNS-1Fw Flight Management Systems

STC Holder

HELI-ONE CANADA ULC
AIRFRAMES & STRUCTURES FAC 4740 AGAR DRIVE
CANADA

Responsible Office

New York Aircraft Certification Office (ANE-170), Tel: (516) 228-7300

Aircraft

Airbus AS332A Super Puma
Airbus AS332L Super Puma
Airbus AS332L1 Super Puma

Components

UNS-1Fw

STC Number	Status	Date
10055463	Issued	11/11/2015

Description

To Introduce Universal UNS-1Fw Flight Management System as an Upgrade to the Existing UNS-1L Currently Installed on BAe 146 Series Aircraft Under EASA.A.S.02689

STC Holder

N/A

Responsible Office

N/A

Aircraft

BAE 146-100
BAE 146-200
BAE 146-300

Components

UNS-1Fw

STC Number	Status	Date
ST03065NY	Amended	8/28/2012

Description

The installation of Dual Universal UNS-1F Flight Management System WAAS Up-grade

STC Holder

FIELD AVIATION COMPANY INC.
2450 DERRY ROAD EAST HANGAR 2 SHIPPING/RECEIVING
CANADA

Responsible Office

New York Aircraft Certification Office (ANE-170), Tel: (516) 228-7300

Aircraft

DeHavilland DHC-8-300 Q300
DeHavilland DHC-8-100 Q100
DeHavilland DHC-8-200 Q200

Components

UNS-1Fw

The addition of WAAS technology to NAC operations has effectively provided precision-like approach capability to most airports and runways system-wide. What this means is that there is greater reliability and flexibility for Dispatch, and the pilot can fly a precision-like approach with vertical guidance to any favored runway.

Timo Saarinen

VP Flight Operations, Northern Air Cargo (Boeing 737-200 and -300)

Products

Support & Services

Resources

About Universal

Contact

UNS-1Fw | Extended FMS

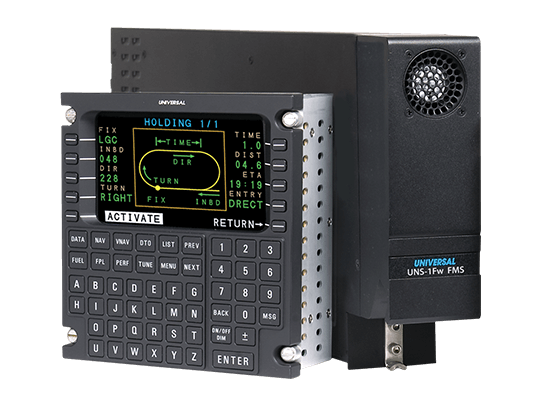

The UNS-1Fw is comprised of an FPCDU and a remotely mounted Navigation Computer Unit (NCU). Three FPCDU options are available:

Flat Panel Color Displays (integral/CDU)

Internal 12-channel GPS/SBAS

Company Routes Database

Clearance-language Format

Navigation Database

ARINC 424 Procedural Leg Guidance

Heading Mode

VNAV

Holding Patterns

3-D Approach Mode

Fuel Management

Take Off/Landing (excluding UNS-1Lw)

Frequency Management

UniLink Compatible

TAWS Compatible

Universal Cockpit Display Compatible

SCAT-I GPS Approach Compatible

SBAS Planned Growth

LAAS Planned Growth

Hardware

Standard Interfaces

Power

Internal SBAS/GPS Receiver

FAA TSO/ETSO

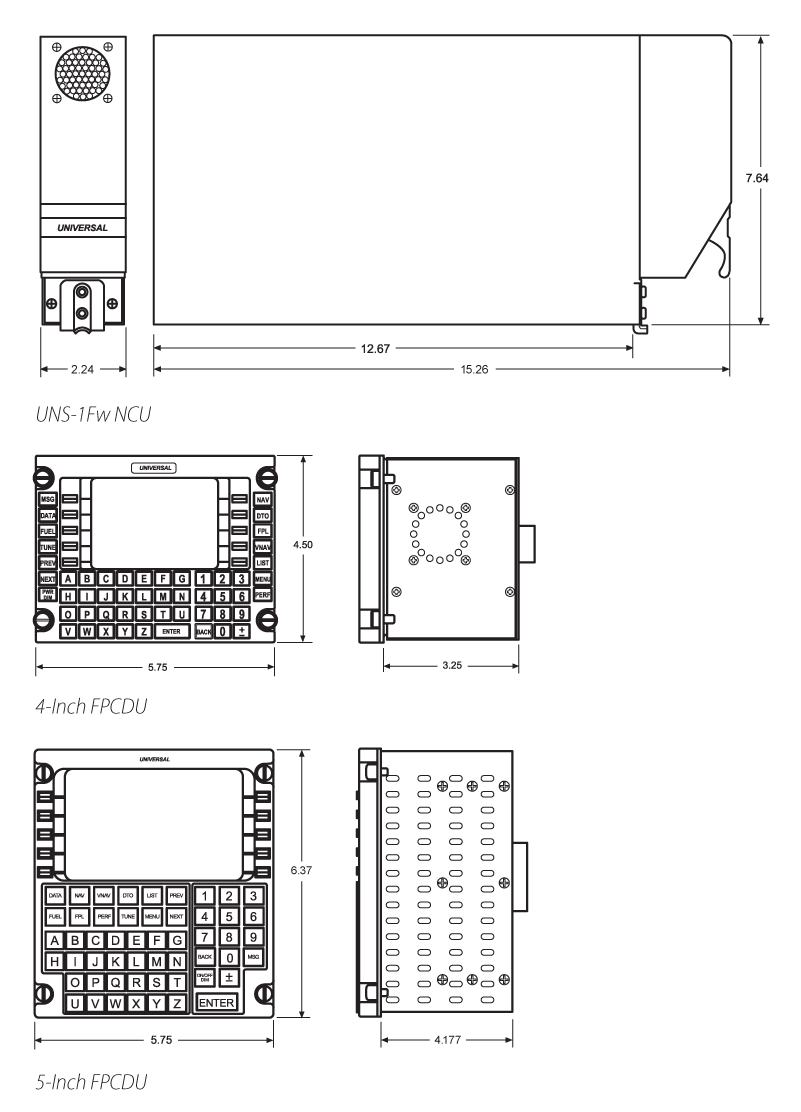

5-inch FPCDU

4-inch FPCDU

Control Display Unit

Navigation Computer Unit
