UNS-1Lw | SBAS-Flight Management System

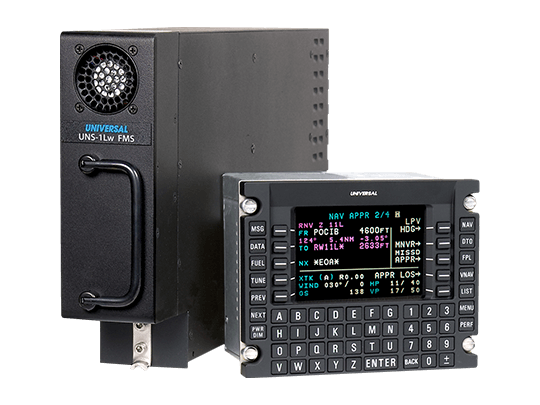

The UNS-1Lw features a standard set of I/O capabilities for interface with essential components of the flight deck. The system is comprised of:

• a 4- or 5-inch Flat Panel Control Display Unit (FPCDU)
• a remotely mounted Navigation Computer Unit (NCU). The NCU is contained in a 2-MCU LRU which includes an internal GPS/SBAS receiver.

Flight Planning

FMS Flight Planning

The Flight Planning (FPL) function provides you with the quickest, most efficient means of creating a flight plan, and the most pilot-friendly method of altering the flight plan elements as desired or required by ATC. It has been engineered to incorporate the greatest level of safety, with numerous built-in safeguards such as the entry of list-referenced selections which reduce both keystrokes and errors.

Off-Line Flight Planning

The Universal Flight Planning (UFP) Windows based software provides you with off-line flight planning, GPS Fault Detection, and Exclusion prediction capabilities. Learn more and download the Universal Flight Planning (UFP) Program.

Fuel Management

Using inputs from the fuel flow sensors, the SBAS-FMS provides real-time fuel management with the most extensive fuel information and calculations available – the kind that can eliminate unnecessary fuel stops, save you time and money and provide increased safety. Specific range and endurance are provided along with fuel, time and distance predictions for your destination.

Lists

The unique LIST function provides a quick and efficient means to access and enter data, minimizing alphanumeric entries and reducing input errors. The “smart” lists are geographically prioritized based on aircraft position and course, then alphabetized on each page. You can quickly enter airports, navaids, intersections and airways all by simply entering the list reference number corresponding to the data desired.

Data Management

The DATA function key provides access to a variety of navigation data management capabilities. Easy access to your stored navigation database for detailed review of SIDs, STARs, approaches, runways, airways, intersections, navaids and airports. Your pilot-defined database can be accessed and edited, allowing you to create new or modify your pre-defined departures, arrivals, approaches, runways, airports, waypoints, alignment points and stored routes. Your non-editable company route database can be accessed as well.

Navigation

The SBAS-FMS will fly all procedural leg types in accordance with ARINC 424. This sophisticated capability allows you to fly the most complex procedures such as heading to altitude, precision arc, procedure turn, holding pattern and more – all the necessary maneuvers required to accurately fly SIDs, STARs and approaches.

Direct-To

The Direct-To (DTO) function key is specifically dedicated for flight plan changes in response to “Direct-To” clearances. The SBAS-FMS easily takes you from your present position direct to any point on or off your flight plan using circular arc steering. If the desired waypoint is on the flight plan, it may be selected by entering its list reference number. If the desired waypoint is not on the flight plan, the LIST function can be used to access other waypoints/airports within the surrounding area from the database, or the identifier can be manually entered into the field.

Vertical Navigation

Universal Avionics’ SBAS-FMSs incorporate the most advanced concepts in vertical guidance and control. VNAV pages provide for such features as computed Top-Of-Descent, Target Vertical Speed indication and selection, and Vertical Direct-To commands. Vertical waypoints can be conveniently defined with altitudes or Flight Levels, and lateral offsets.

Frequency Management

Frequency management capabilities allow you to tune your NAV and COMM radios through the SBASFMS – completely interfaced with your existing Radio Management Unit. The SBAS-FMS presents a list of suggested COMM, Nav and NDB frequencies pre-selected based on aircraft position and phase of flight. Additionally, you can customize the radios tuned through the SBAS-FMS by storing an “active” and up to four “preselect” frequencies. A “recall” feature allows you to swap the active with the last frequency tuned without affecting the preselect frequencies.

Messages

An extensive library of messages has been programmed into the SBAS-FMS. The message annunciator alerts you of system status advisories, including way- point alerts, sensor watchdog functions, and self-test. “Pop-up” messages in response to invalid entries further simplify system operation. The Message (MSG) key may also be used to access datalink communications should this optional equipment be installed.

Holding Patterns

Holding patterns are accurately flown through the SBAS-FMS automatically, complete with appropriate entry procedure: direct, parallel or teardrop. The navigation database includes holding patterns that are part of departure, arrival, approach and missed approach procedures. The aircraft will fly the normal flight plan legs and then automatically enter the holding pattern upon reaching the holding fix. You may also manually define a holding pattern by specifying the holding fix, inbound course, turn direction and either time or distance of holding leg. When armed, the holding pattern will be entered automatically upon reaching the fix. A DTO HOLD command is also provided to enable you to go direct to a holding fix at any time.

Approach

Once near your destination, you can easily link the appropriate approach for the active runway into your flight plan. Approaches and runways from the navigation database, and those which have been pilot defined, are easily accessed.

Display and User Control

Display and user control is provided through the 4-inch or 5-inch FPCDU. A Multi-functional Control Display Unit (MCDU) is specially tailored for airline or special mission operations. Universal’s FPCDUs feature graphics capabilities and incorporate the latest technology in Active Matrix Liquid Crystal color Displays (AMLCD). They feature the highest contrast, lowest reflection and greatest horizontal and vertical viewing angles available, and offer superb sunlight readability. Unique parallax control is also provided. The system uses two character sizes and line graphics to enhance data recognition.

Night Vision Goggle-Compatible

Universal Avionics’ 4-inch and 5-inch FPCDUs are modified with Night Vision Goggle (NVG)- compatible glass display panels, which changes the lighting output in such a way that the unit can be used in flight decks where operators are wearing night vision goggles.

Flat Panel Color Displays (integral/CDU)

Internal 12-channel GPS/SBAS

• TSO-C146c, Class Gamma-3
• FDE prediction program for remote/oceanic ops

Company Routes Database

• Up to 2,000 routes, 200 company waypoints and 100 company airports

Clearance-language Format

Navigation Database

• SID/STAR procedures
• Airways
• Approaches
• Plain-language references

ARINC 424 Procedural Leg Guidance

Heading Mode

VNAV

• Fully coupled
• Computed top-of-descent
• Target vertical speed
• Vertical Direct-To

Holding Patterns

• Included in Navigation Database
• Manually defined

3-D Approach Mode

• Laterally coupled
• Vertically coupled

Fuel Management

• 4 Fuel flow inputs

Take Off/Landing (excluding UNS-1Lw)

Frequency Management

UniLink Compatible

• Weather graphics
• Text Messaging

Universal Cockpit Display Compatible

SCAT-I GPS Approach Compatible

SBAS Planned Growth

LAAS Planned Growth

Hardware

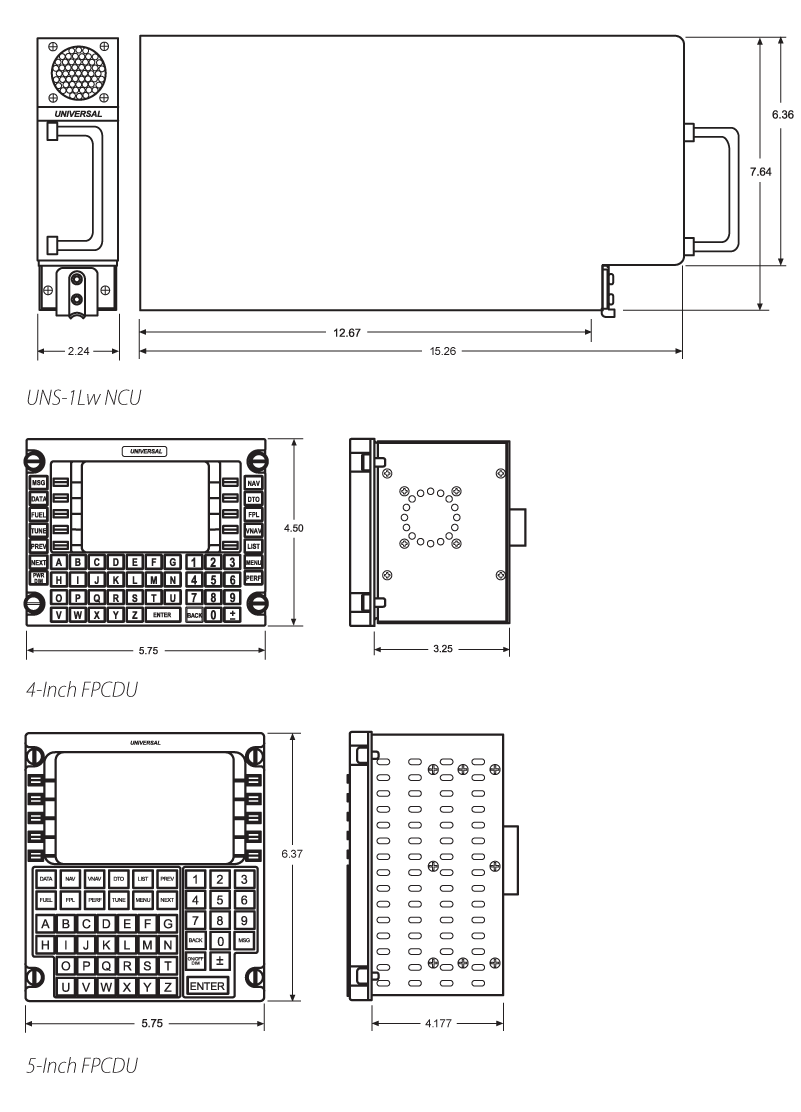

• Size: 7.64 in H x 2.24 in. W x 15.26 in. D
• Weight: 6.5 lbs.
• Mounting: 2 MCU Rack
• Control/Display: Compatible with MCDU, 5-inch FPCDU, 4-inch FPCDU

5-inch FPCDU

• Size: 6.38 in. H x 5.75 in. W x 3.25 in. D
• Weight: 3.8 lbs.
• Display: Color
• Faceplate: Gray or Black Lines/Charcters: 11/24
• Line Select Keys: 10
• Panel Lighting: 5 or 28 VDC
• Video (NTSC, RGB format): Optional Weather Graphics: Optional

4-inch FPCDU

• Size: 4.50 in. H x 5.75 in. W. x 3.25 in. D
• Weight: 3.0 lbs.
• Display: Color
• Faceplate: Gray or Black Lines/Charcters: 11/24
• Line Select Keys: 10
• Panel Lighting: 5 or 28 VDC
• Video (NTSC, RGB format): Optional Weather Graphics: Optional

Standard Interfaces

• All Digital Configuration, Digital & Analog Configuration
• 8 Inputs/5 Outputs

Power

• Primary Input: 28 VDC standard
• Lighting: 5 or 28 VDC
• Consumption: 56 Watts max.
• Cooling: Convection

Internal SBAS/GPS Receiver

• 12-Channel Satellite Tracking Engine, TSO-C146c, Class Gamma-3, FDE Prediction Program for Remote/Oceanic Ops

FAA TSO/ETSO

C109, C115b, C146c, C190, JTSO C115b

Navigation Database Subscriptions & Ordering

Navigation database subscription service is available in worldwide and regional coverage areas to meet the requirements of your flight operations. It provides current, accurate navigation information for your FMS. Database contents include elements such as SIDs, STARs, airways and more.

The annual subscription service includes 13 updates released on a 28-day cycle. Each update refreshes the entire database, including waypoints used within your stored routes and pilot-defined procedures. The navigation information is only valid for the 28 day period for which it was produced. New updates are released prior to the effective date of each cycle update.

The download service is provided for free via UniNet, which offers superior reliability and integrity for every download. USB Memory Stick shipment is available for certain FMS Software Control Numbers (SCN), for an additional fee. Please contract us for more information about this option.

FMS navigation databases are produced and provided in accordance with the highest quality standards as specified in DO-200A/ED-76. Universal Avionics holds an FAA Type 2 Letter of Acceptance (LOA) for processing and producing the FMS navigation database.
