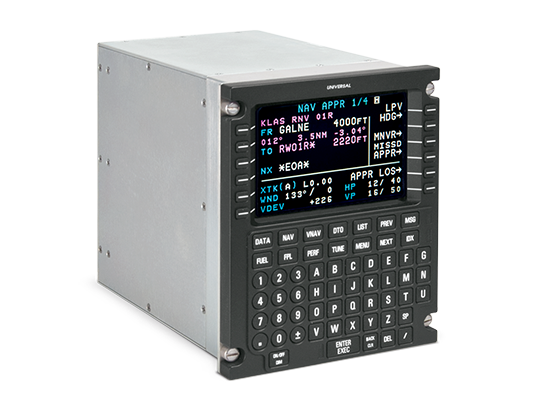

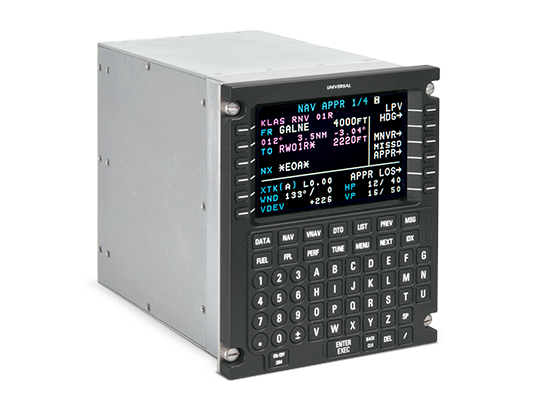

MCDU | Multi-Function FMS for Airlines & Special Missions

Developed for airline or special mission operations, the MCDU features additional ARINC 429 I/O ports which can support up to six ARINC 739 interfaces for ACARS, Satcom and future NextGen CNS/ATM systems.

The MCDU interfaces with the UNS-1Fw and UNS-1Lw NCUs. It also includes an ARINC 702 bus for interface with third party FMSs.

Advanced FMS Features and Functionality
Multiple ARINC 429 I/O ports
ARINC 739 Interface for ACARS, Satcom and more
Graphics Support for Color Weather Images
Video Capable for TAWS and Camera Interfaces
High-Resolution, Sunlight
Readable Color LCD
Compact and Lightweight

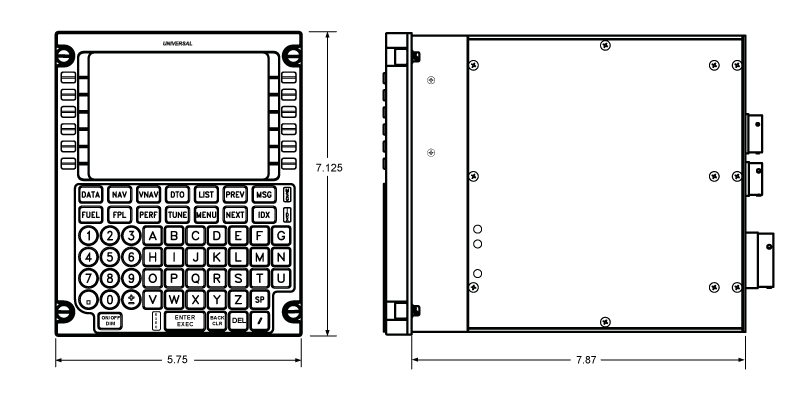

Faceplate: 7.125” x 5.75”

Specifications +

Hardware

Size: 7.13 in. H x 5.75 in. W x 7.87 in. D
Weight: 6.5 lbs.
Mounting: ¼ turn Dzus Fasteners
Control/Display: Integral 5-inch color Flat Panel Display

Standard Interfaces

All Digital Configuration, Digital & Analog Configuration, ASCB Version A Configuration
8 Inputs/4 Outputs (Digital & Analog) 16 Inputs/8 Outputs (All Digital)

Power

Primary Input: 28 VDC standard
Lighting: 5 or 28 VDC
Consumption: 78 Watts max.
Cooling: Convection

Internal SBAS/GPS Receiver

12-Channel Satellite Tracking Engine, TSO-C146c, Class Gamma-3, FDE Prediction Program for Remote/Oceanic Ops

FAA TSO/ETSO

C109, C115b, C146c, C190, JTSO C115b

Advanced FMS Features and Functionality
Multiple ARINC 429 I/O ports
ARINC 739 Interface for ACARS, Satcom and more
Graphics Support for Color Weather Images
Video Capable for TAWS and Camera Interfaces
High-Resolution, Sunlight
Readable Color LCD
Compact and Lightweight
Faceplate: 7.125” x 5.75”

Hardware

Size: 7.13 in. H x 5.75 in. W x 7.87 in. D
Weight: 6.5 lbs.
Mounting: ¼ turn Dzus Fasteners
Control/Display: Integral 5-inch color Flat Panel Display

Standard Interfaces

All Digital Configuration, Digital & Analog Configuration, ASCB Version A Configuration
8 Inputs/4 Outputs (Digital & Analog) 16 Inputs/8 Outputs (All Digital)

Power

Primary Input: 28 VDC standard
Lighting: 5 or 28 VDC
Consumption: 78 Watts max.
Cooling: Convection

Internal SBAS/GPS Receiver

12-Channel Satellite Tracking Engine, TSO-C146c, Class Gamma-3, FDE Prediction Program for Remote/Oceanic Ops

FAA TSO/ETSO

C109, C115b, C146c, C190, JTSO C115b
